      • Commodity name: TUBING

      Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process.

      Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes.

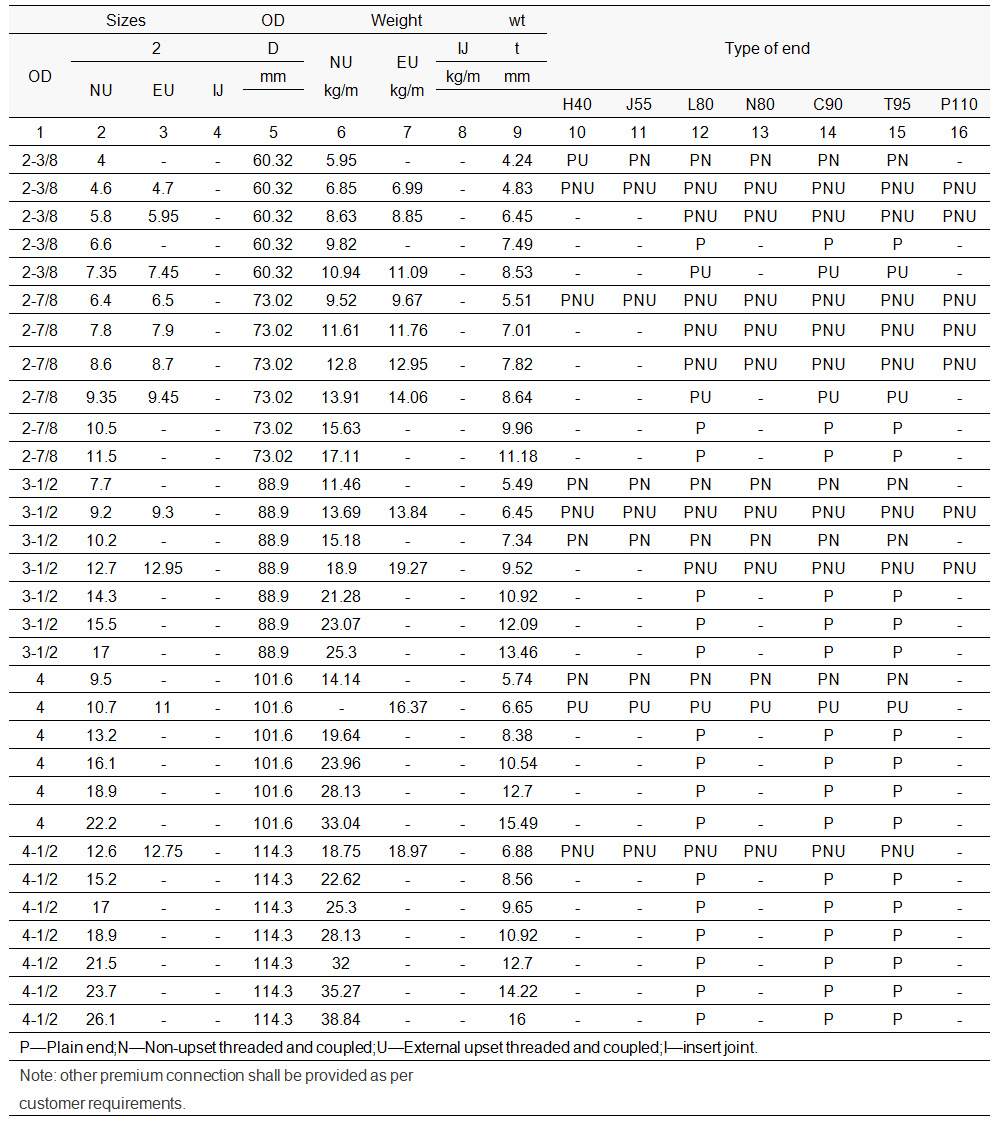

      1.Specification range:OD: 42.16 MM - 114.3 MM(1.66"--4 1/2") WT:3.56-16mm(2.3ppf-26.1ppf)
      2. Materials: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc
      3. Executive standards: API 5CT, GB, ISO11960, GOST
      4. Thread connection: NU, EU，IJ
      5. Length: R1, R2, R3
      6. Testing: NDT etc related rules of API 5CT and 5B
      7:Type:seamless pipe







    Online inquiry

    If you are interested in this product, please fill out the following form and send your needs to us, and we will reply to you as soon as possible!

    If the inquiry content is short, you can briefly describe it here. If the content is long, you can upload the inquiry form below or send the inquiry directly to our company's email address.

    Click to upload

    Please upload jpg images within 5M

    yzm
    Submit
    %{tishi_zhanwei}%

    Related Products

    Image Name

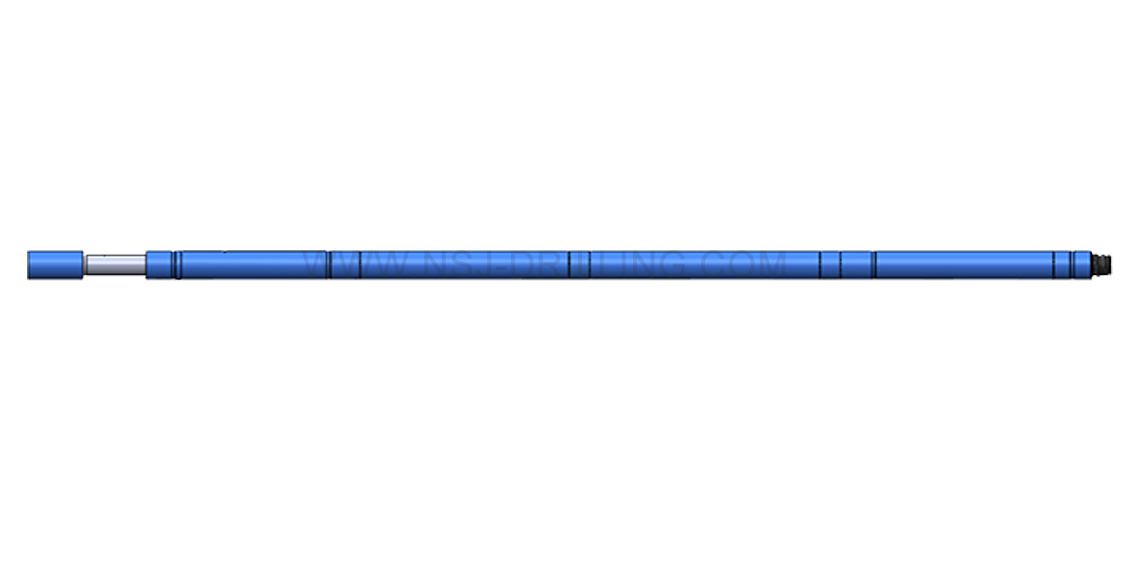

    QYZ type full hydraulic directional drilling impactor

    In normal drilling operations, downhole drill string combinations are often stuck due to various reasons. A shock absorber is an effective tool for un-sticking. The QYZ type fully hydraulic shock absorber is an up-and-down integrated shock absorber. When the downhole drill string is stuck, the shock absorber can be activated by lifting or lowering the drill string to generate upward or downward shock force, allowing the drilling operation to proceed smoothly. This type of shock absorber has the advantages of simple operation, stable performance, safety and reliability, and convenient maintenance.

    Image Name

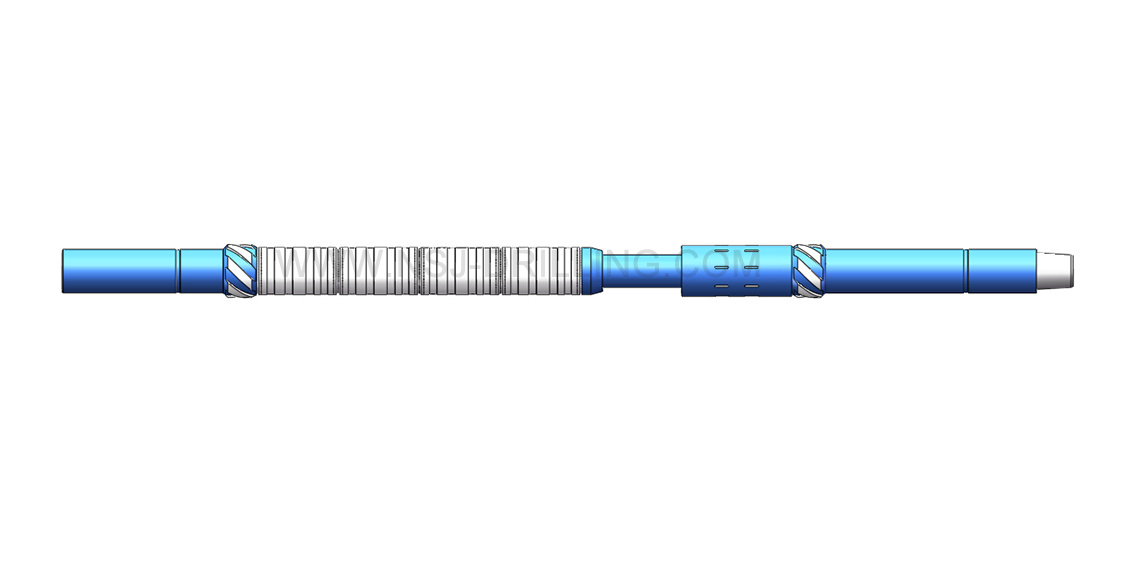

    Bar-shaped strong magnetic salvage

    As a new type of pipeline cleaning and salvage tool, the bar-shaped strong magnetic salvage tool is usually used in conjunction with a multi-functional scraper to adsorb ferromagnetic debris in the mud. It is mainly used in well cleaning operations with low flow velocity and low circulation, and the adsorption effect is obvious.

    Image Name

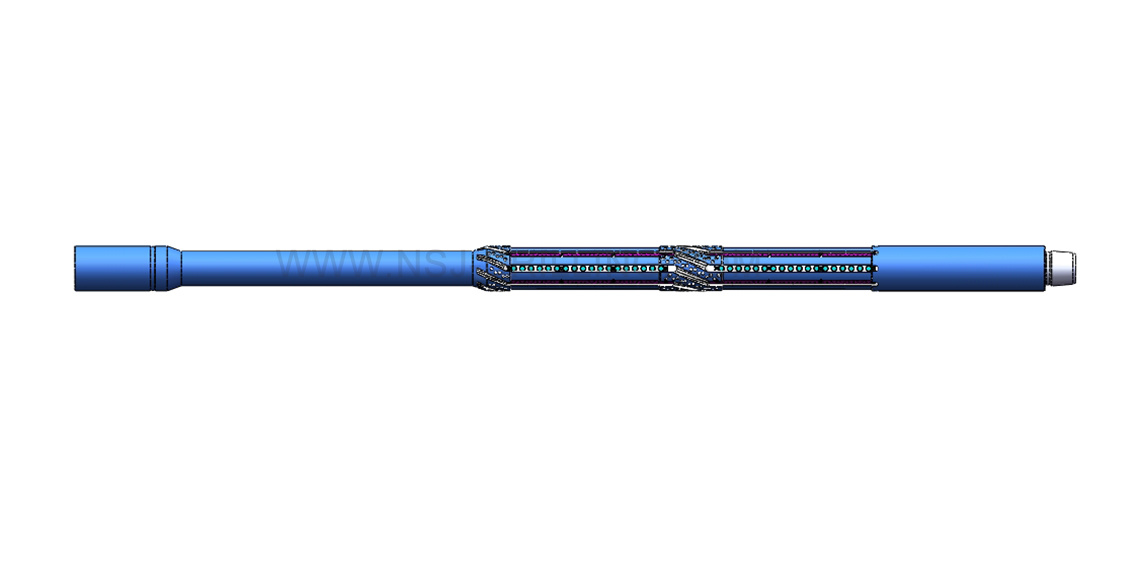

    Annular strong magnetic salvage

    The annular strong magnetic fishing tool is a new type of multi-functional strong magnetic tool that can be used as a strong magnetic fishing tool and as a fishing cup. It effectively integrates strong magnets and a fishing cup, with the annular magnet adsorbing ferromagnetic debris in the mud, while other non-magnetic debris such as rock is recovered by the cup body. It is mainly used in low-velocity, low-circulation well-washing operations, with obvious adsorption effects. The tool is available in a standard type (usable at ≤120 ℃) and a high-temperature type (usable at ≤200 ℃).

    Image Name

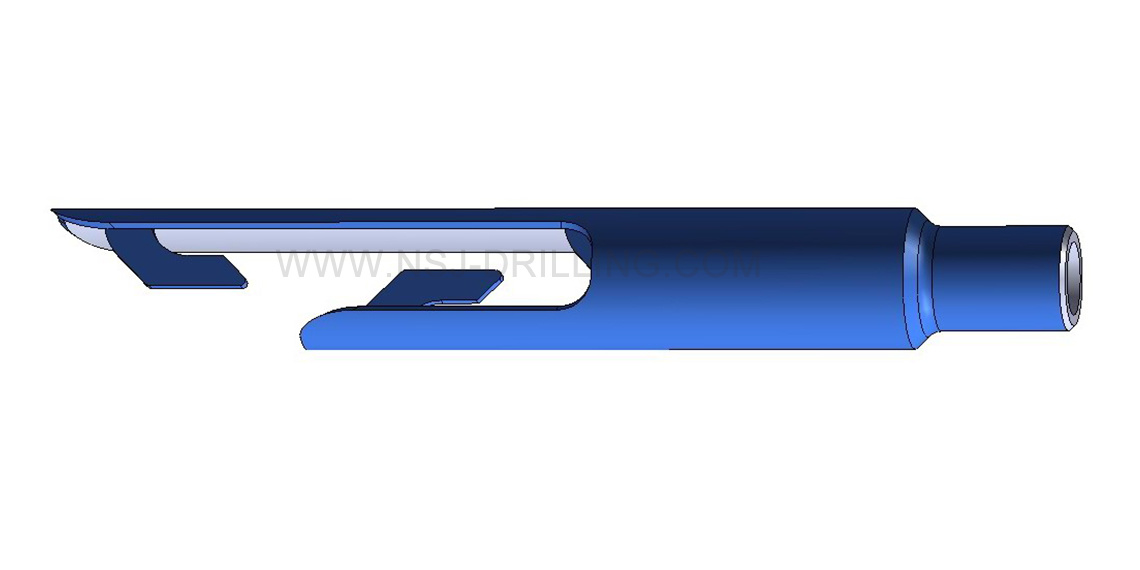

    Inner hook

    Inner hooks are used to fish various types of ropes and other dropped objects from casings or drill pipes, such as steel wire ropes, logging wires, and scraping blades. The inner hook is inserted into the rope or other dropped object, and when the drilling tool is lifted, the hook teeth catch the dropped object and bring it to the surface.
