Maunal Tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs. They are designed and manufactured as per API Spec 7K specification for drilling and well servicing equipments.

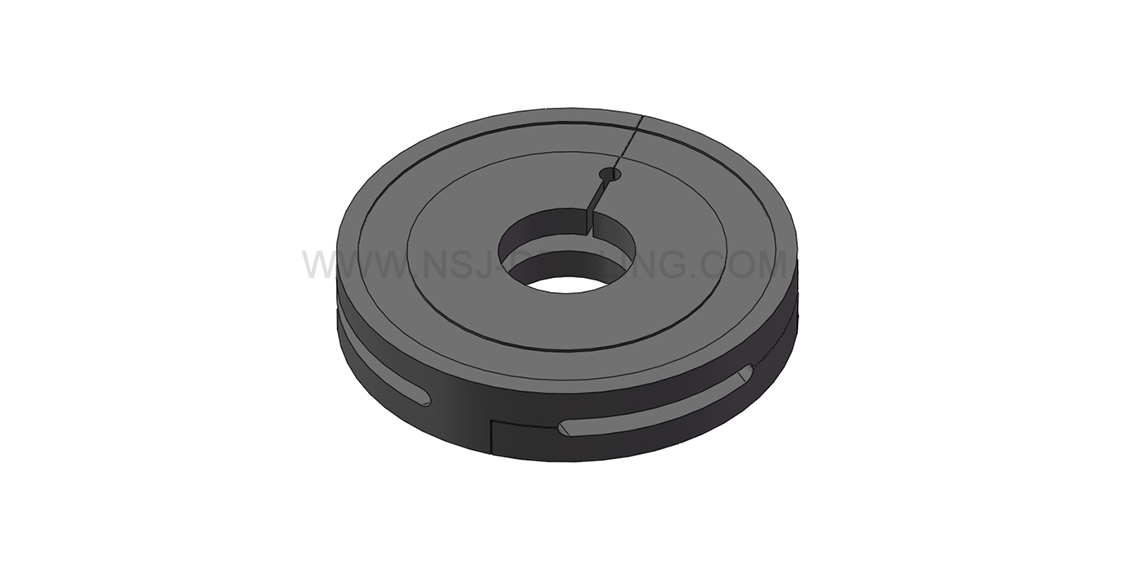

MASTER BUSHING AND INSERT BOWLS
Our company can manufacture master bushings and insert bowls size from 17-1/2 to 49-1/2 inch. They are cast with high-quality alloy steel and sizes conform to API Spec 7K. There are two types, pin drive and square drive. API standard rotary slips, drill collar slips, casing slips and roller kelly bushings can be contained in them.

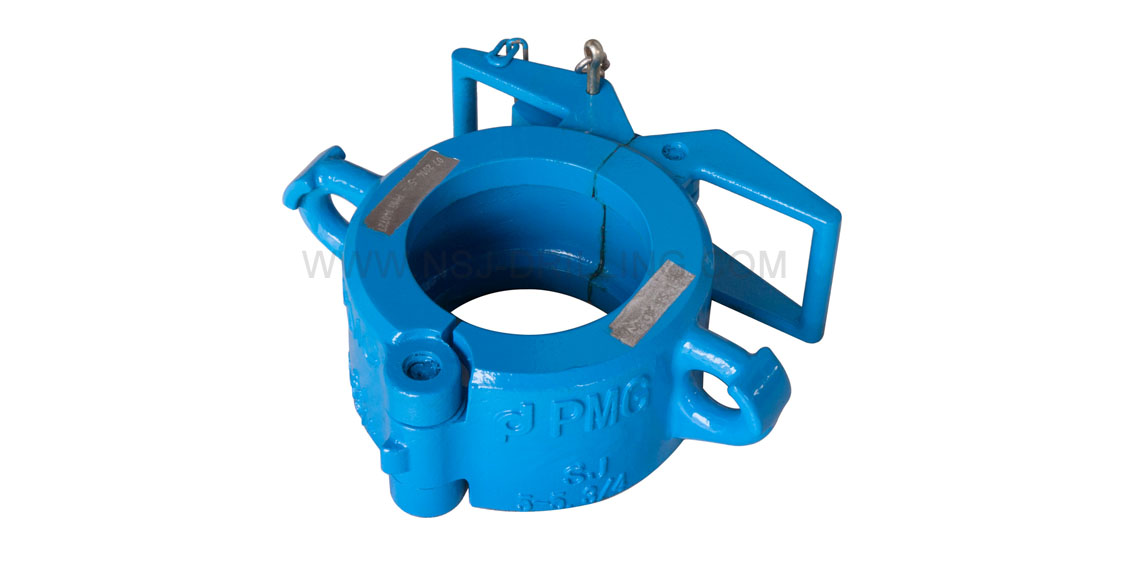

CASING BUSHINGS AND INSERT BOWLS
Our company manufacture CU, CUL, CB etc. Casing bushings, it can clamp pipe size from 2 3/8in-30 in. And type CU and CUL are integral type bushing; type CB is split bushing, dimensions are up to API Spec 7K.
SUCKER ROD HOOKS
Sucker Rod Hook is one of the hoisting equipments for sucker rods. It is suitable for all depth and operating condition. RH suck rod hook is composed of hook, bail and locking assembly. The bail of suck rod is able to get into the hook without opening the locking arm. After the bail is on right place, locking arm reset (preventing the bail of suck rod get out of hook) under the function of spring which ensures the lifting safety of suck rod hook. In addition, put a bush on the spring in case the something gets into the locking assembly and get the locking assembly lost the function.
SUCKER ROD WRENCHES
Sucker Rod Wrench is made of high-quality alloy steel, and boasts and advantages of hardness and abrasion resistance. Its opening is applicable to the square shape of the steel-made sucker rod. The balanced design of wrench can reduce the fatigue of users, which is an outstanding tool for manual mounting and demounting sucker rod.

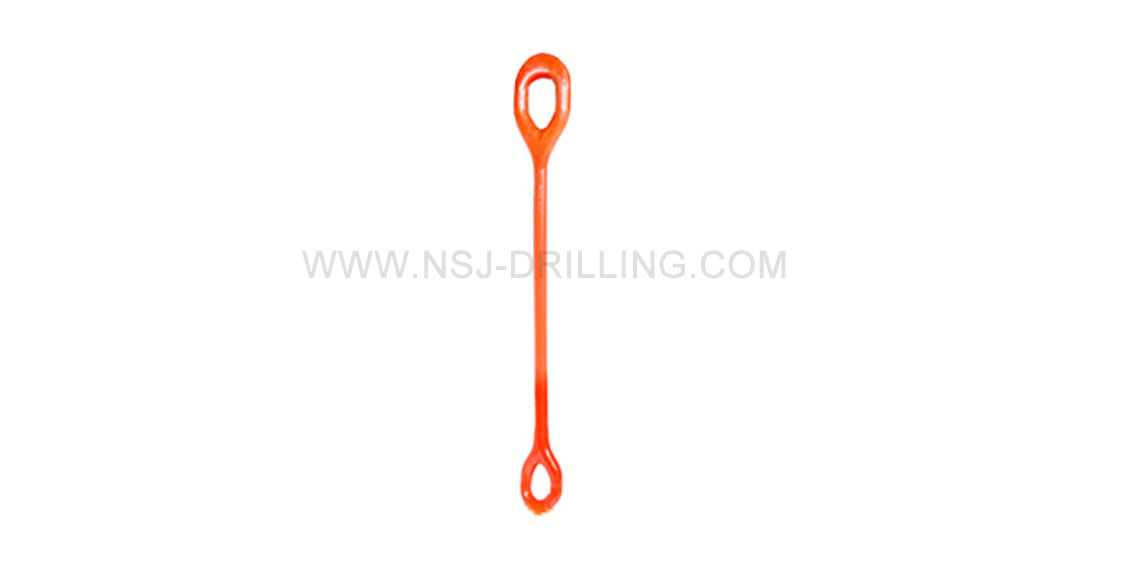

SUCKER ROD ELEVATOR
1. Type SRE Sucker Rod Elevators are hoisting tools for handling sucker rods. 2. They are designed and manufactured according to API 8A/8C Specification for drilling and production hoisting equipment.

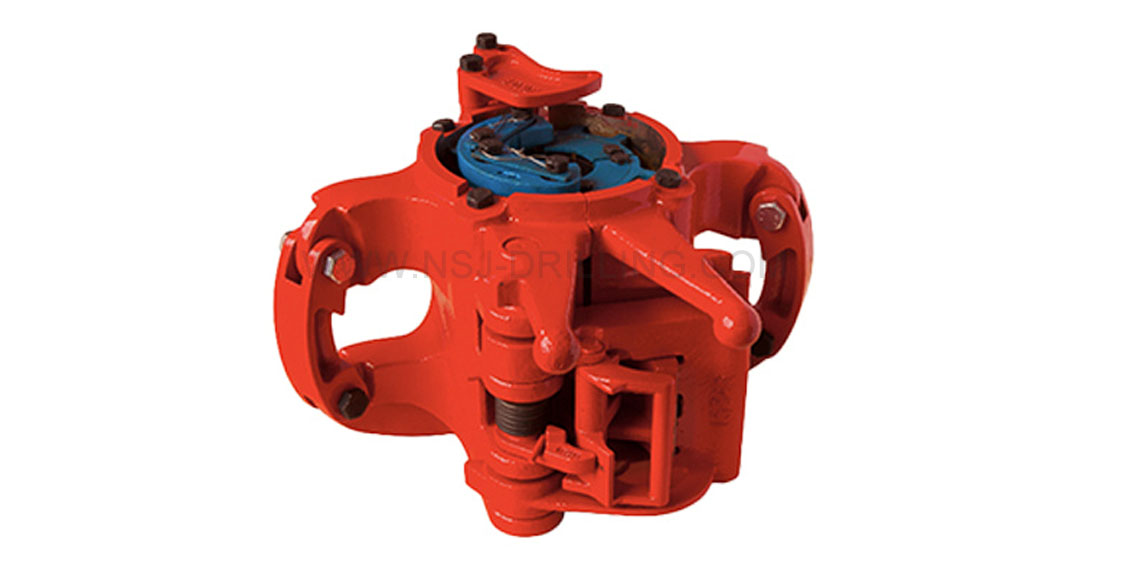

SE series Slip Type Elevators/Spiders
SE series Slip Type Elevators/Spiders are mechanized tools with air operating. They can handle casings up to 24-1/2inch. They are easy to operate and dependable enough. Also they can reduce workload.They are designed and manufactured according to API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment.

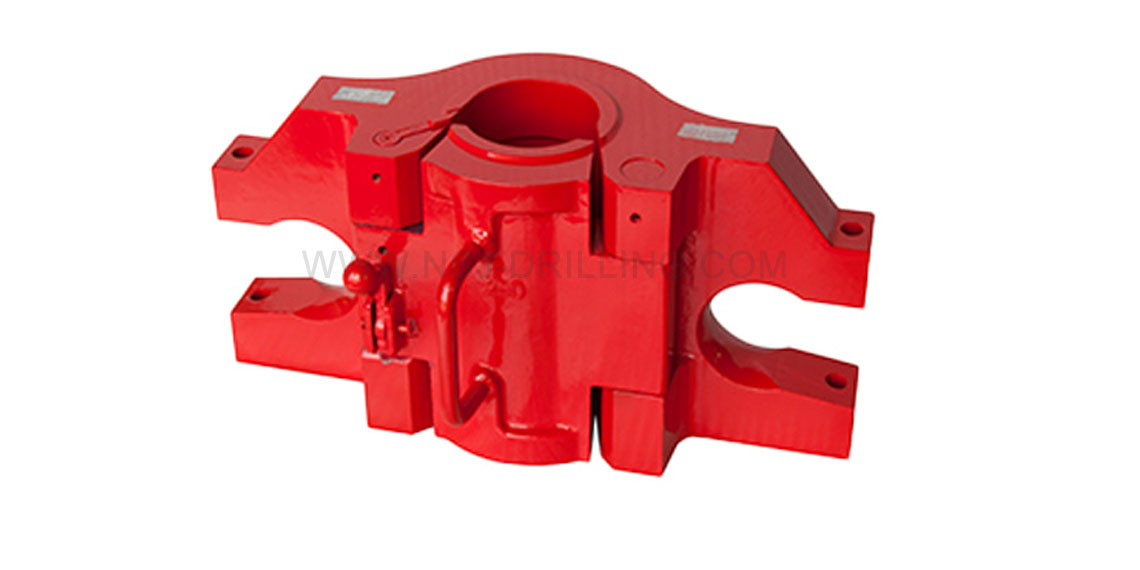

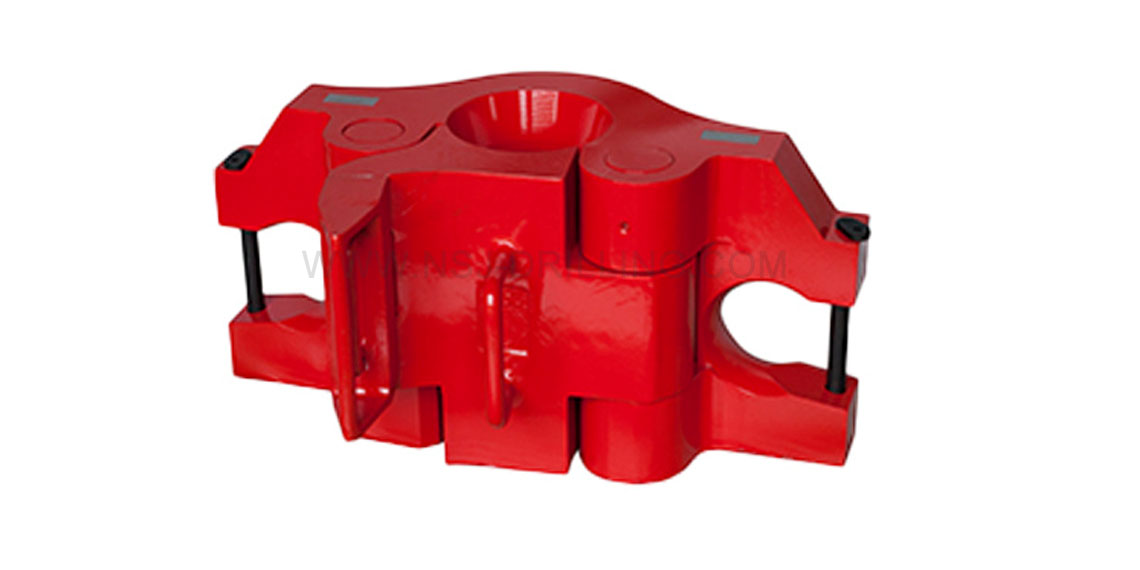

JOY CASING SPIDER
It is designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment. The Hinged Casing Spider has a hinged spider body with a split insert bowl. It is put above rotary table and is suitable for most casings of different sizes. It is designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Both API Spider and API split master bushing have the same inner diameter with 1:3 taper. The spider body is made of high-quality alloy steel and heat-treated specially. The spiders are not so heavy and are easy to operate. They are designed and manufactured according to API SPEC 7K Specification for drilling and well servicing equipment.
