FISHING TOOLS
HALF-OPEN FISHING MAGNET

HALF-OPEN FISHING MAGNET

Semi-open fishing magnet is a tool for fishing small junks in oil and geological drilling, It has the advantages of simple structure, convenient operation, reliable performance, small size and light weight, The permanent magnet is used to absorb and fish the small falling objects such as drill clip, palm, cone, bearing, slip body, slip tooth, tong tooth and other tools falling into the well, so as to effectively fish the small falling objects and purify the bottom of the well.       As shown in the figure, the Semi-open fishing magnet is mainly composed of top sub, magnetic sleeve, high temperature magnetic steel and retaining ring.The connector thread is connected to the drill string, and the retaining ring holds the underside of the magnet, which is used to absorb magnetized junks.

More

THREE-BALL FISHER

THREE-BALL FISHER

More

RELEASING AND CIRCULATING OVERSHOT

RELEASING AND CIRCULATING OVERSHOT

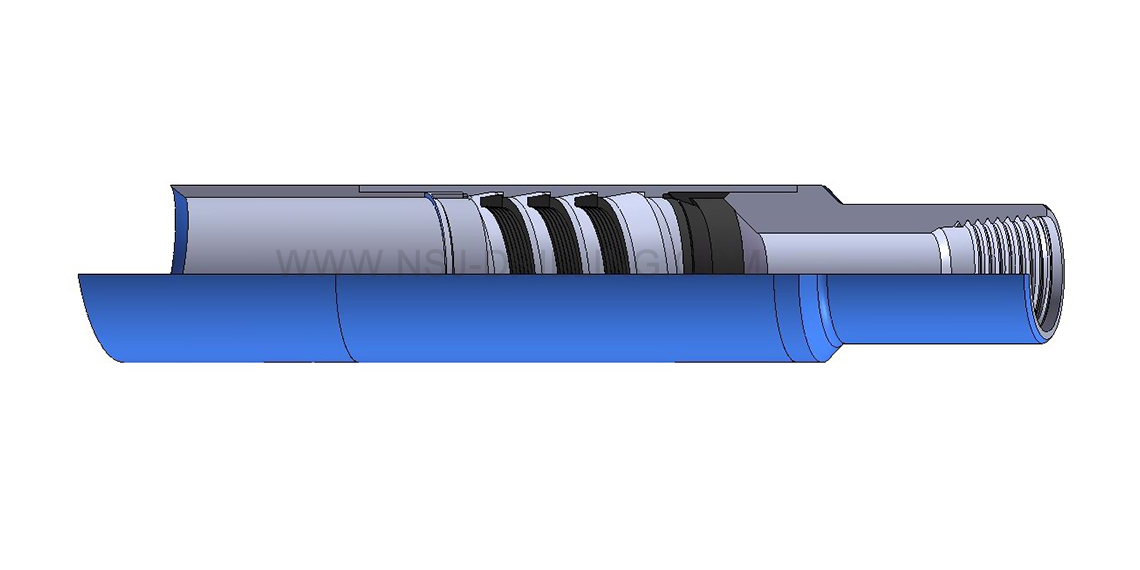

Releasing and circulating overshot is one of the fishing tools which can externally engage the pipe, It can fish drill collar, drill pipe, tubing and other pipes. The tools have installed seal, it can circulate drilling fluids in the higher pump pressure after catching the fish.

More

SHORT CATCH RELEASING OVERSHOT

SHORT CATCH RELEASING OVERSHOT

  Short catch releasing overshot is mainly used for catching tubing、drill pipe、sucker rod body and crossover which sticking point is close to fish top end, or fish top end has a small length above coupling, generally the fish  top end can be caught when it expose more than 50mm.

More

SUCKER ROD OVERSHOT

SUCKER ROD OVERSHOT

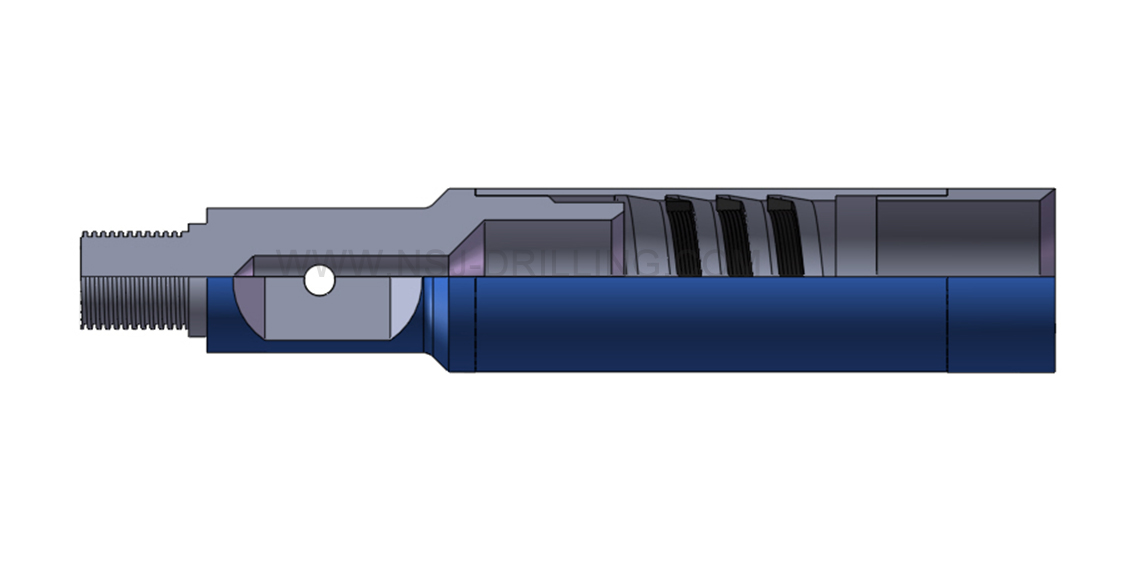

  The releasing sucker rod overshot can be lifted out when it catches the sucker rod, and once it needs to drop out from the tool, the fish can be released easily and without damage. It has two types grapple, basket grapple and spiral grapple, type A and type B. Sucker rod overshot has the characteristics of small, low cost, reasonable structure design, convenient use and wide application.

More

SHORT CATCH SUCKER ROD OVERSHOT

SHORT CATCH SUCKER ROD OVERSHOT

  Short Catch Sucker Rod Overshot is mainly used for catching coupling where close to the fish top end, or the sucker rod body with a short length above the coupling. Short catch sucker rod overshot has the characteristics of small in size, low cost, reasonable structure design, convenient use and wide application, meanwhile when it works in excessive torque condition, it can prevent overshot self-locking, so it effectively improve the success rate of fishing, which also improves the efficiency of fishing operations.

More

RELEASING SPEAR

RELEASING SPEAR

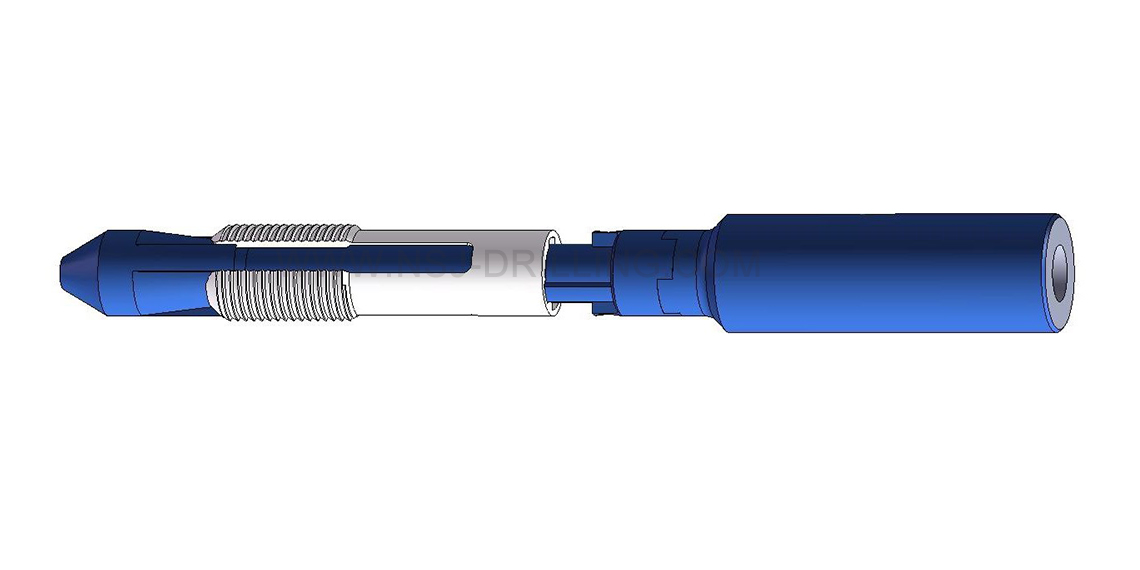

  LM-T type releasing spear is one of the fishing tools which can catch the fish internally. Mainly used for catching drilling pipe, casing, tubing and other cylindrical hollow type fish in oil and gas field well repairing. It can use with other tools such as internal casing cutter, jars. If the fish was struck and cannot be lift, release the spear and trip out the drill string.

More

RELEASING BACK OFF SPEAR

RELEASING BACK OFF SPEAR

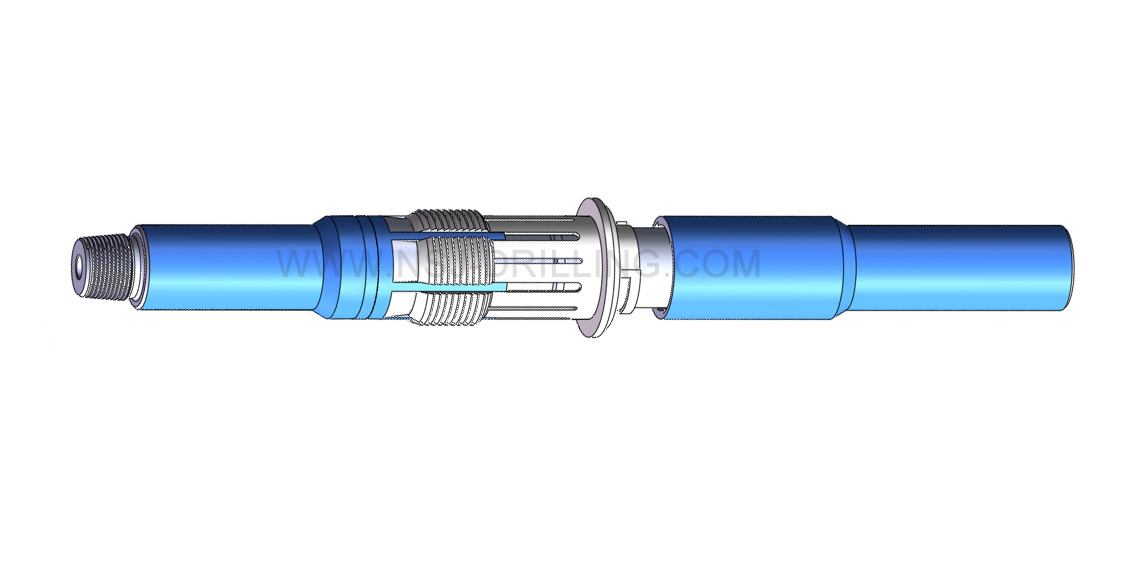

  Releasing back off spear is used for fishing, back off and releasing the fish. It can catch fish and at the same time transmit left hand torque in back off operation. It can instead of left-hand taper taps and die collars. The function is similar to back off sub. The difference is that it does not need to make up thread with the fish, it can catchat any parts of the fish’s ID.

More

SLIDING BLOCK SPEAR

SLIDING BLOCK SPEAR

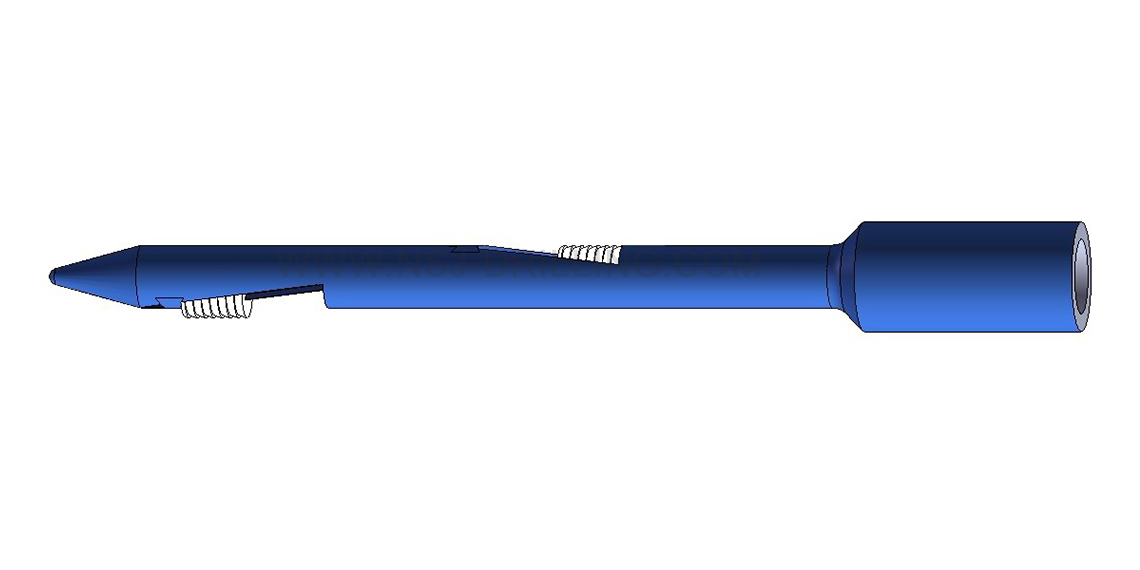

  Sliding block spear is an inside fishing tool for fishing the junk internally such as fishing drill pipe, tubing, washover pipe, liner, packer, water distributor, etc which has internal bore, and it also can do back off for the stuck junk or use with other tools(such as jar and back off tool etc). This tool has simple structure, convenient operation, and convenient maintenance.

More
